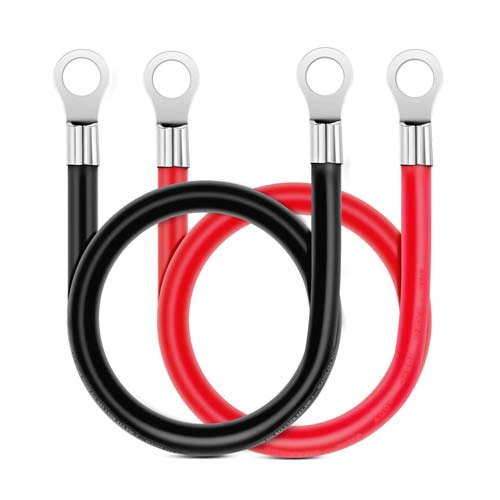

Battery Cables

EV Shielded, Unshielded & Battery Cables

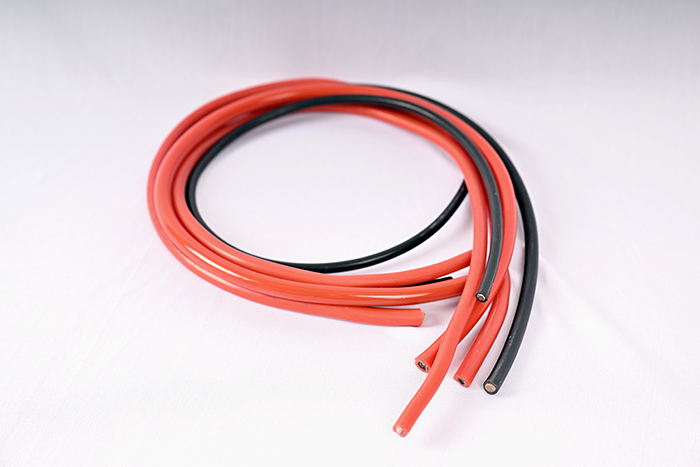

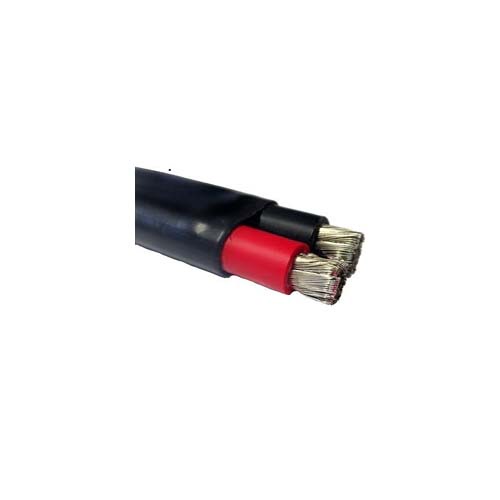

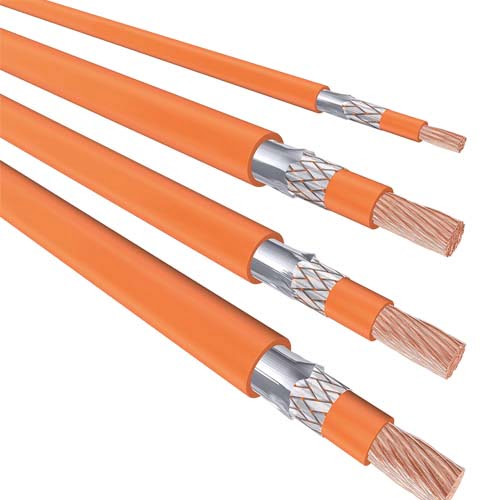

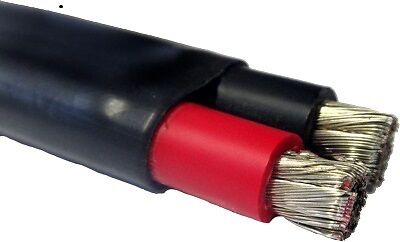

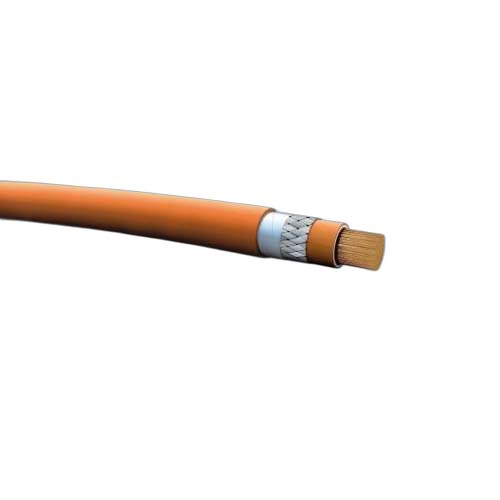

We manufacture a range of shielded and unshielded cables for the automotive industry which includes single and multi core cables available with or without shielding.

  • Sizes upto 1C x 240 mm2, 4C x 120 mm2, 25C x 2.5 mm2
  • Braiding with Annealed Bunched Copper / Annealed Tinned Copper
  • Flame Retardant, Heat Resistant, Highly Flexible
  • Bending Radius ranging from 3D to 10D
  • Manufactured as per IS 2465 / ISO 6722 / ISO 19642

Temp Range:

IS 2465 : -40°C to 105°C
ISO 6722 (Class B) : -40°C to 105°C
ISO 6722 (Class C) : -40°C to 125°C
ISO 6722 (Class D) : -40°C to 150°C
ISO 6722 (Class E) : -40°C to 175°C
ISO 6722 (Class F) : -40°C to 200°C
