Characteristics

• Used in thermocouples to carry extremely precise signals from thermocouple sensor to reading device
• Voltage Rating: up to 300V
• Temperature Rating: 70°C, 85°C, 105°C or higher as per requirement
• Can be made with FR, FRLS, LSZH, High Temperature ratings as well

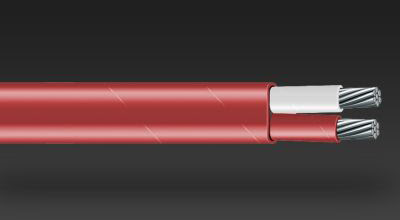

Cable Construction

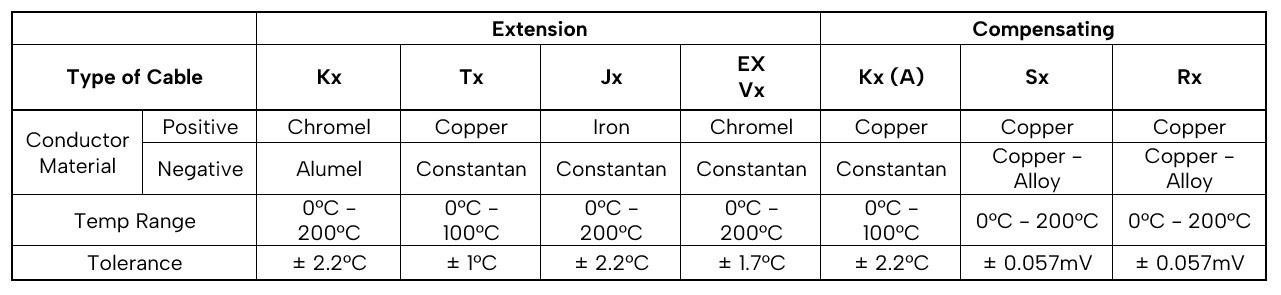

• Solid or stranded conductor of the respective thermocouple extension/compensating alloys
• Insulated with PVC to form a core

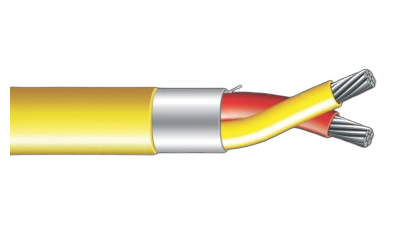

• Two cores twisted together forming a pair, with an Aluminium Mylar tape for shielding if required
• Multiple pairs laid up together, with an Aluminium Mylar tape for shielding
• Sheathed with PVC
