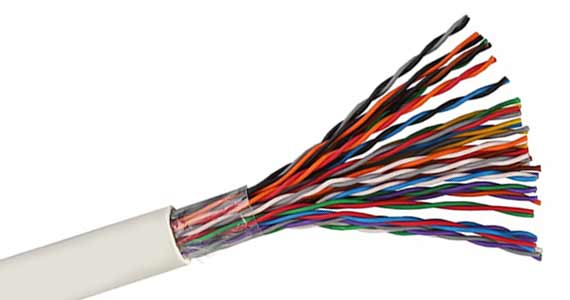

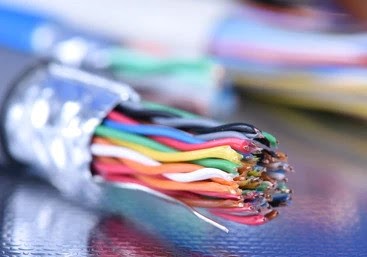

Telecommunication Cables

Cables   /   General   /   Telecommunication Cables

Characteristics

  • Voltage Rating: 24V / 48V
  • Temperature Rating: 70°C (available for higher temperatures as well)
  • Mainly used for telephone wiring, pulse code modulation (PCM), RS-232 communication systems, digital transmission networks etc.
  • As per DOT (GR/WIR 06/03) / VDE: 0815, IEC 60189 / IS 5608, CW 1308

Cable Construction

Conductor : Annealed Bare / Tinned Solid Copper Conductor

Insulation : PVC / PE / Low Capacitance Polyolefin / PP / Foam Polyethylene insulated cores

Twisting : Two cores are twisted to form a pair

Laying : Pairs are laid up in units/sub-units/concentric layers with an overall polyester tape

Sheathing : PVC

Special Variants Available

  • Alternative conductor sizes can be provided (0.25 to 0.98mm).
  • Individual Pair Shielded / Braid Shielded Cables.
  • FR-PVC / FRLS-PVC / LSZH or other Outer sheath.
  • E1 Cables. SDH, DWDM, GSM, LTE Cables.
  • Variety of impedances on cables (75, 100, 120, 150, 600 Ohms).
  • Armoured Cables – Steel Braid / Steel Tape.
