LAN Cables

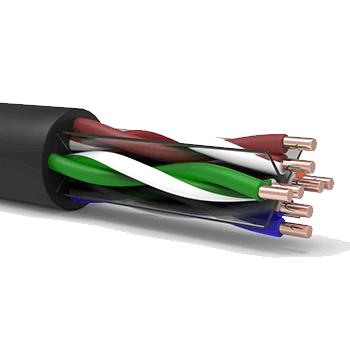

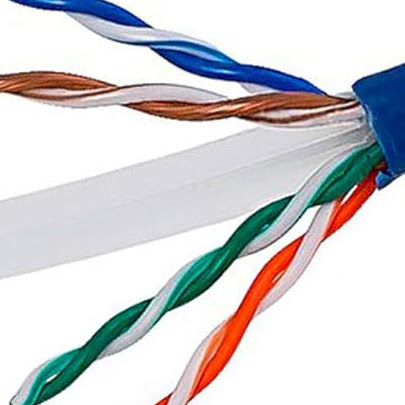

4 Pair x 23 AWG CAT 6 UTP Unarm / Arm Cable

Applicable Standard: TIA / EIA 568 – C, UL: 444

Cable Construction

Conductor : 23 AWG Annealed Bare Copper (Solid)

Insulation : Halogen Free Low Capacitance Polyolefin

Fillers : If required

Inner Sheath (if armoured) : PVC / FR-PVC / FRLS-PVC / LSZH / TPU

Armour (if armoured) : SS Braid Wire 0.18mm

Outer Sheath : PVC / FR-PVC / FRLS-PVC / LSZH / TPU

Overall Diameter : 6.0 ± 0.5 mm for Unarmoured Cable
7.8 ± 0.8 mm for Armoured Cable

Pairing Colour Code : White/Blue + Blue; White/Orange + Orange; White/Green + Green; White/Brown + Brown

Electrical Characteristics

Max Conductor Resistance: : 74.5 Ω/km

Insulation Resistance (min): : 5 G Ω/km at 20°C

Mutual Capacitance (nom): : < 55 pF/m

Impedance (1-100 MHz): : 100 ± 15 Ω

Propagation delay skew: : < 20 ns/100m

HV Test at 50Hz: : 800V / 1 min

Frequency MHz	RL ≥ dB	ATT ≤ dB	NEXT ≥ dB	PSNEXT ≥ dB	ELFEXT ≥ dB	PSELFEXT ≥ dB	DELAY ≤ ns
1	20	1.9	74	72.3	68	65	570
4	23	3.7	65	63.3	59	56	552
8	24.5	5.3	60.7	48.8	49.9	46.9	546.73
10	25	5.9	59	57.3	48	45	545.38
16	25	7.5	56	54.2	43.9	40.9	543
20	25	8.4	55	52.8	42	39	542.05
25	24.3	9.5	53.3	41.3	40	37	541.2
31.25	23.6	10.6	52	49.9	38.1	35.1	540.44
62.5	21.5	15.4	47	45.4	32.1	29.1	538.55
100	20.1	19.8	44	42.3	28	25	537.6
200	18	29	40	37.8	22	19	536.54
250	17.3	32.8	38	36.3	20	17	536.27

CAT 6 SFTP Cable Available on request

4 Pair x 24 AWG CAT 5E UTP / SFTP Cable

Applicable Standard: TIA / EIA 568 – C, UL: 444

Cable Construction

Conductor : 24 AWG Annealed Bare Copper (Solid)

Insulation : Halogen Free Low Capacitance Polyolefin

Shielding (for SFTP) : Aluminium Mylar tape with optional ATC drain wire

Braiding (for SFTP) : Coverage between 40% and 85% as per customer specification

Outer Sheath : PVC / FR-PVC / FRLS-PVC / LSZH / TPU

Overall Diameter : 5.0 ± 0.5 mm for UTP
6.3 ± 0.7 mm for SFTP

Pairing Colour Code : White/Blue + Blue; White/Orange + Orange; White/Green + Green;
White/Brown + Brown

Electrical Characteristics

Max Conductor Resistance: : 93.5 Ω/km

Insulation Resistance (min): : 5 G Ω/km at 20°C

Mutual Capacitance (nom): : 50 pF/m at 1kHz

Impedance (1-100 MHz): : 100 ± 15 Ω

HV Test at 50Hz: : 800V / 1 min

Frequency MHz	RL ≥ dB	ATT ≤ dB	NEXT ≥ dB	PSNEXT ≥ dB	ELFEXT ≥ dB	PSELFEXT ≥ dB
1	17	2.2	60	57	57.4	54.4
4	17	4.5	53.5	50.5	45.4	42.4
8	17	6.3	48.6	45.6	39.3	36.3
10	17	7.1	47	44	37.4	34.4
16	17	9.1	43.6	40.6	33.3	30.3
20	17	10.2	42	39	31.4	28.4
25	16	11.4	40.3	37.3	29.4	26.4
31.25	15.1	12.9	38.7	35.7	27.5	24.5
62.5	12.1	18.6	33.6	30.6	21.5	18.5
100	10	24	30.1	27.1	17.4	14.4

Armoured CAT 5E UTP / SFTP Cable available on request

RS 485 Communication Unarm / Arm Cable

Applicable Standard: IEC: 60228, IS: 5831, IS: 3975, BS: 5308

Cable Construction

Conductor : Annealed Bare Copper

Insulation : Halogen Free Low Capacitance Polyolefin

Braiding : Annealed Tinned Copper with Coverage between 40% and 85% as per customer specification

Inner Sheath (for armoured) : PVC / FR-PVC / FRLS-PVC / LSZH / TPU / UV-resistant

Amour (for armoured) : Galvanised Iron Wire/Strip

Outer Sheath : PVC / FR-PVC / FRLS-PVC / LSZH / TPU / UV-resistant

Pairing Colour Code : White/Blue + Blue; White/Orange + Orange; White/Green + Green;
White/Brown + Brown; White/Yellow + Yellow; White/Violet + Violet
White/Black + Black; White/Red + Red

Electrical Characteristics

Temperature Rating: : -5°C to 70°C (Flex)
-20°C to 80°C (Static)

HV Test: : 500V / 1min

Impedance: : 100 ± 15 Ω or 120 ± 15 Ω

Construction (Armoured Cable)	Size of Armour GI Wire - mm	Overall Dia of Cable (Approx) - mm	Max Conductor DC Resistance at 20°C - (Ω/km)
1P x 0.5 sqmm	0.9	10.5	39
1Q x 0.5 sqmm	0.9	11.2	39
2P x 0.5 sqmm	0.9	11.2	39
4P x 0.5 sqmm	0.9	14	39
8P x 0.5 sqmm	1.4	18.5	39
1P x 1 sqmm	0.9	12.1	19.5
1Q x 1 sqmm	0.9	13.1	19.5
2P x 1 sqmm	1.4	17.5	19.5
4P x 1 sqmm	1.4	19.2	19.5
8P x 1 sqmm	1.4	24	19.5
1P x 1.5 sqmm	0.9	12.8	13.3
1Q x 1.5 sqmm	0.9	14	13.3
2P x 1.5 sqmm	1.4	18.5	13.3
4P x 1.5 sqmm	1.4	21	13.3
8P x 1.5 sqmm	1.4	25.9	13.3
