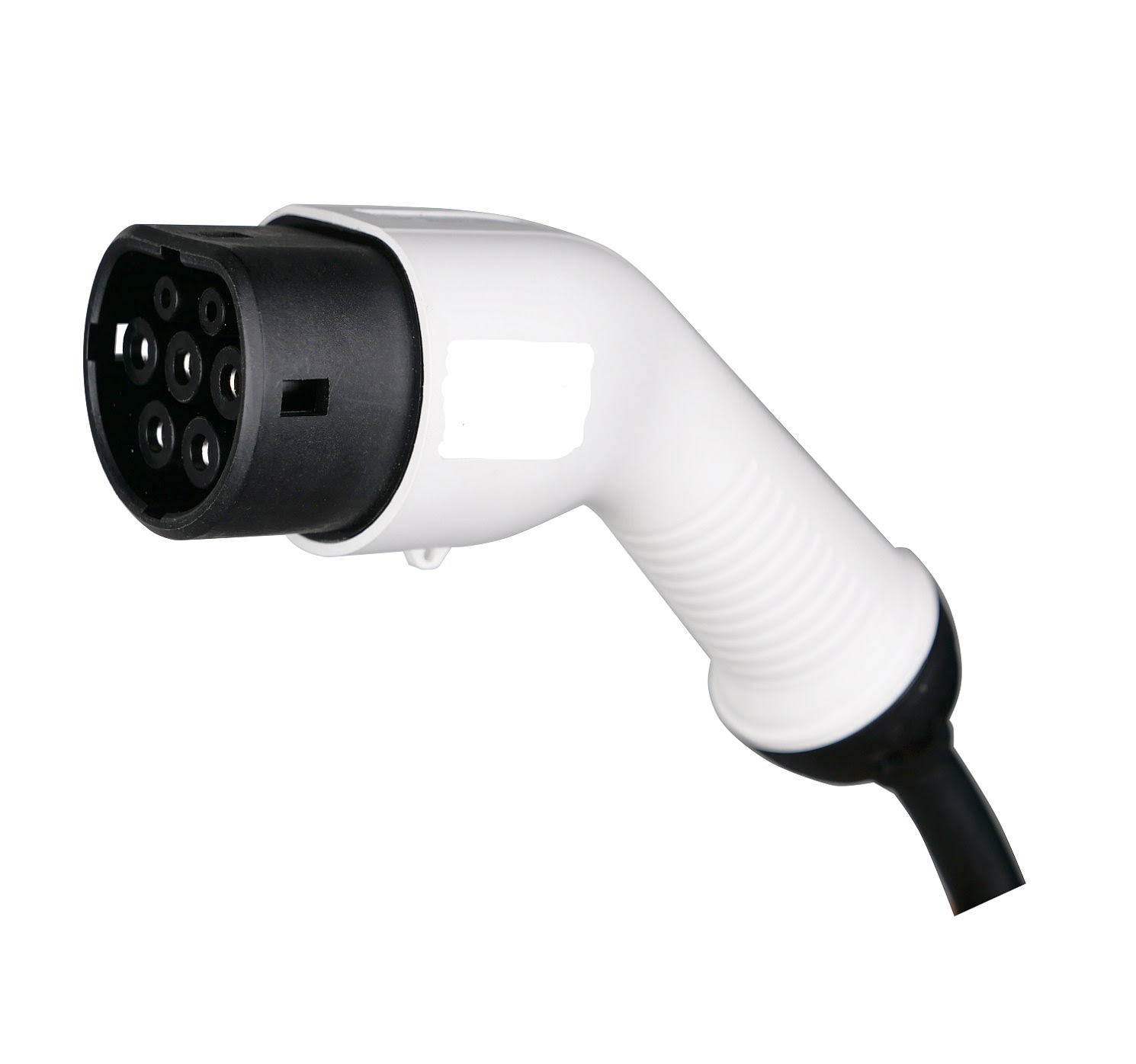

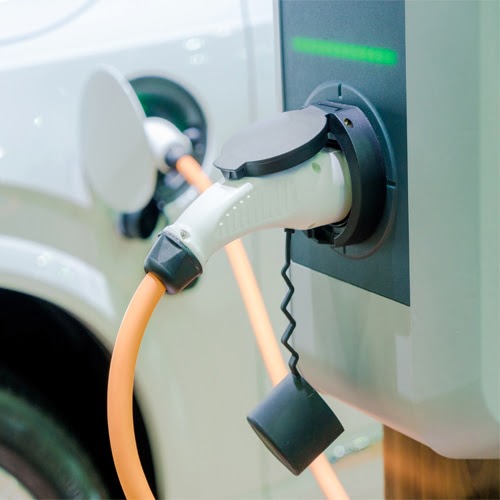

AC Charging Gun Cable Assembly Type – 2

  Products   /   Wire Harness   /   AC Charging Gun Cable Assembly Type – 2

1 Phase / 3 Phase

Performance Standard:IEC 62196-2

Operating Temperature

  • Assembly -20°C to +70°C
  • Cable -40°C to +90°C

Features

  • Insulated terminal design
  • Ergonomic “Pistol Grip” style (IP 54 rated) for easy plugging
  • High quality finish and appearance
  • Great weatherability
  • Pressure, abrasion, and impact resistance

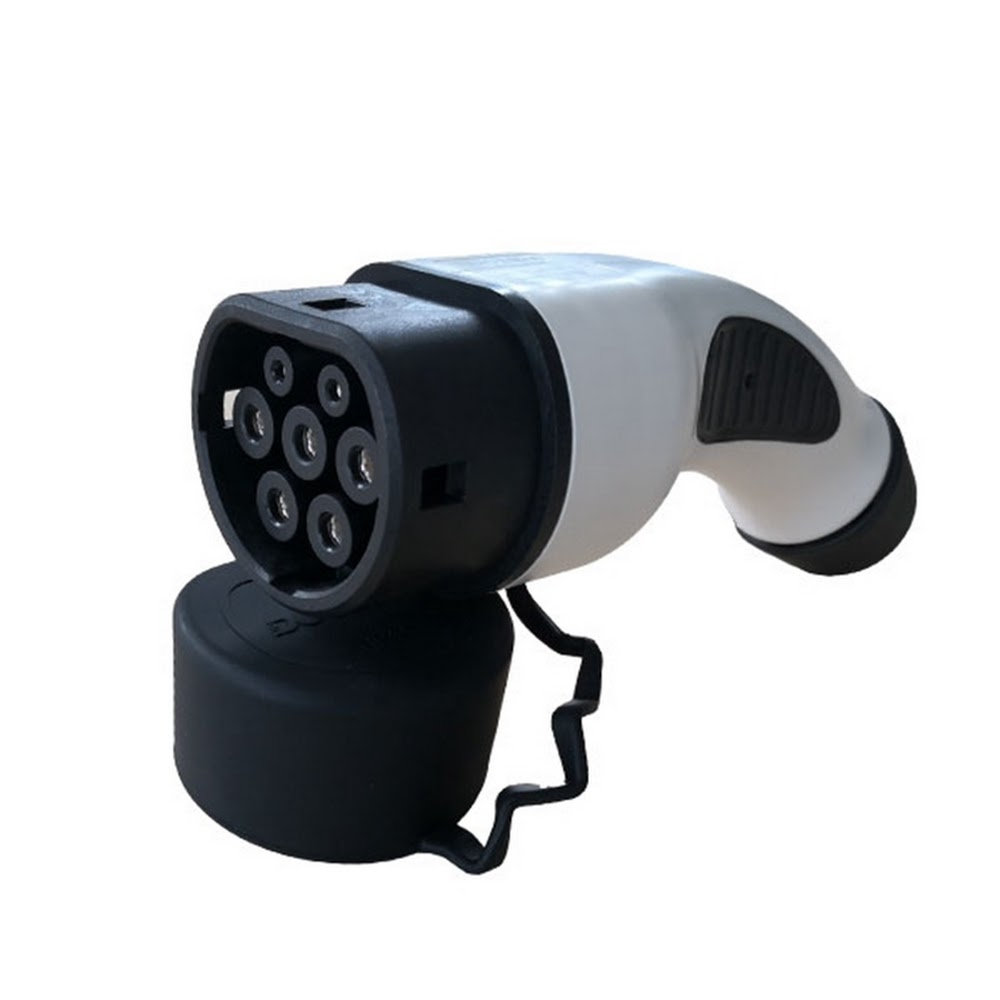

  • Dust cap attached
  • Customisable cable length and colour

Electrical Properties

Rated Current 16A or 32A or 63A
Rated Voltage 250V / 415V AC
Withstand Voltage 2000V
Contact Resistance 0.055±0.005Ω
Insulation Resistance 500MΩ ( DC 500V )

Material

Shell Thermoplastic
Contact Bush Copper alloy, Silver or Nickel plating
lnserts Thermoplastic
Sealing gasket Rubber or Silicon rubber
Insulator inflammability UL94 V-0

Mechanical Properties

Mating cycles ≥ 5000 cycles (unloading)
Connector (in mated condition) retention force:-
AC coupler Unmating
Contact Resistance Mating
Mating Force ≤ 80N

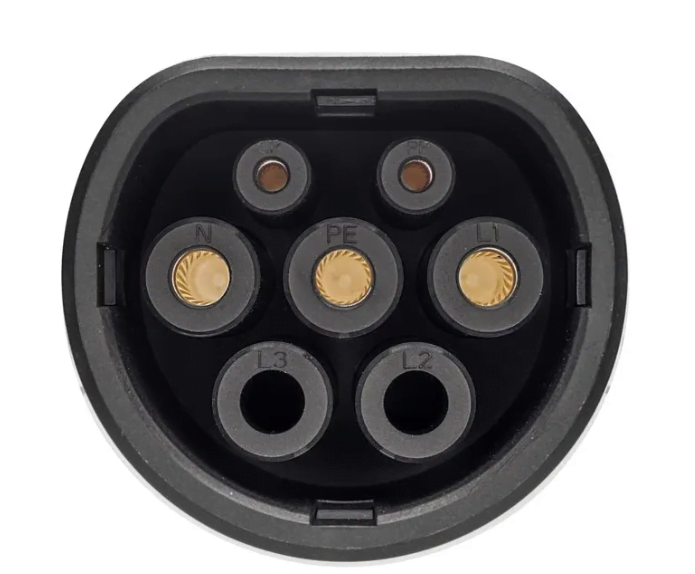

Standard Wiring

Rated Current Cable Specification Part No
16A (1 Phase) 3 x 2.5 mm2 + 1 or 2 x 0.5 mm2 NMT AC-TYPE2-16A-1P-LL
16A (3 Phase) 5 x 2.5 mm2 + 1 or 2 x 0.5 mm2 NMT AC-TYPE2-16A-3P-LL
32A (1 Phase) 3 x 6 mm2 + 1 or 2 x 0.5 mm2 NMT AC-TYPE2-32A-1P-LL
32A (3 Phase) 5 x 6 mm2 + 1 or 2 x 0.5 mm2 NMT AC-TYPE2-32A-3P-LL
63A (1 Phase) 3 x 16 mm2 + 1 or 2 x 0.5 mm2 NMT AC-TYPE2-63A-1P-LL
63A (3 Phase) 5 x 16 mm2 +1 or 2 x 0.5 mm2 NMT AC-TYPE2-63A-3P-LL

Note:- ‘LL’ in the above tabledenotes length in metres.
