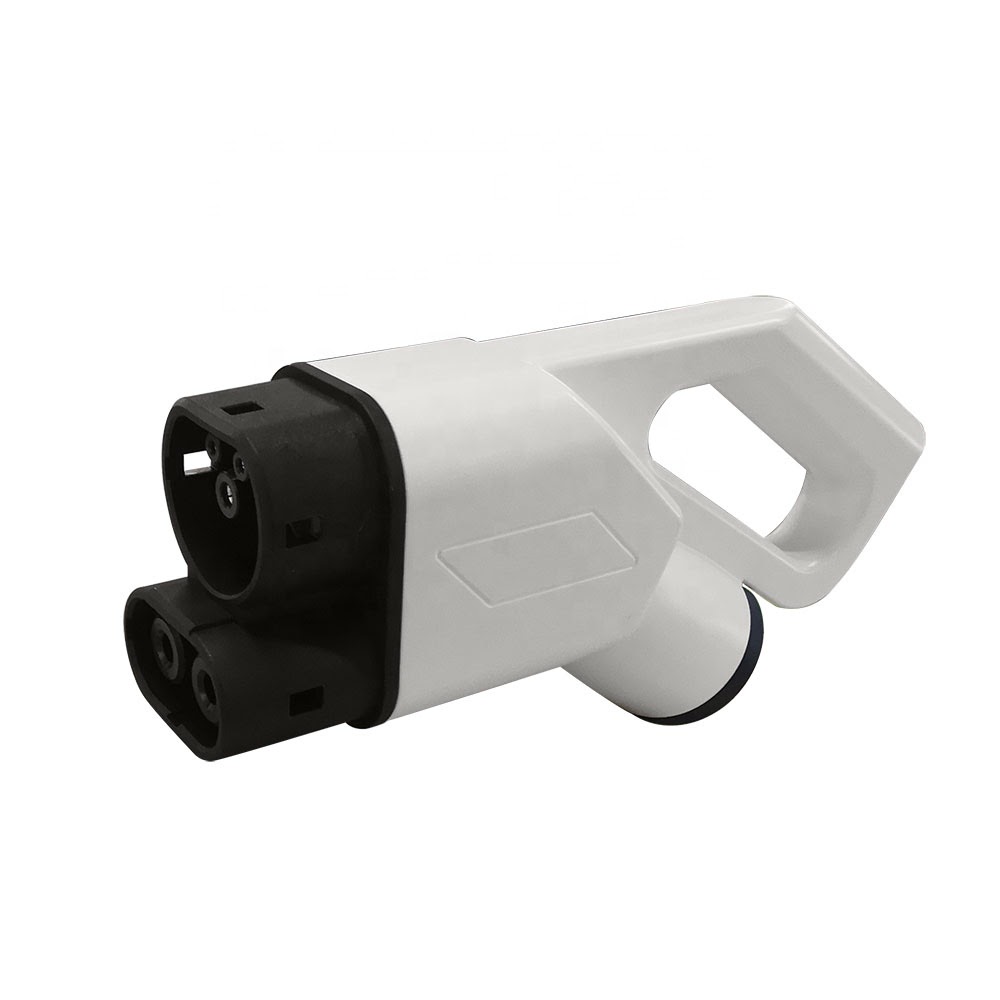

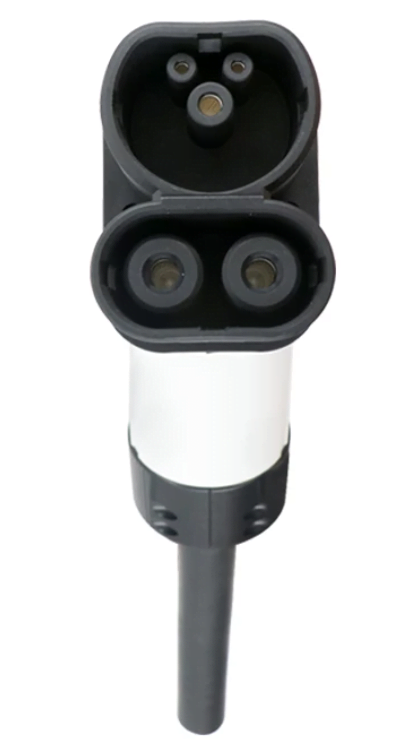

CCS 2 Combo

AC + DC Charging Gun Assembly

Performance Standard: IEC 62196-3

Operating Temperature:

Assembly -20°C to +70°C
Cable -40°C to +90°C

Features

Insulated terminal design
Ergonomic “Pistol Grip” style
IP 55 rated for easy plugging
Pressure, abrasion and impact resistance
Great weatherability
High quality and finish
Customisable length and colour

Electrical Properties

Rated Current 63A to 250A
Rated Voltage 1000VDC
Withstand Voltage 2000V
Contact Resistance 0.5mΩ max
Insulation Resistance >2000MΩ ( DC1000V )

Material

Shell Thermoplastic
Contact Bush Copper alloy, Silver or Nickel plating
Sealing gasket Rubber or Silicon rubber
Insulator flammability UL94 V-0

Mechanical Properties

Mating cycles ≥ 5000 cycles (unloading)
Mating Force ≤ 80N

Cable Specification	Part No
250A – 2C x 80 mm2 + 1C x 35 mm2 + 6C x 0.75 mm2	DC – CCS2COMBO – 250A – LL
200A – 2C x 70 mm2 + 1C x 25 mm2 + 6C x 0.75 mm2	DC – CCS2COMBO – 200A – LL
150A – 2C x 50 mm2 + 1C x 25 mm2 + 6C x 0.75 mm2	DC – CCS2COMBO – 150A – LL
100A – 2C x 25 mm2 + 1C x 16 mm2 + 6C x 0.75 mm2	DC – CCS2COMBO – 100A – LL
63A – 2C x 16 mm2 + 1C x 16 mm2 + 6C x 0.75 mm2	DC – CCS2COMBO – 63A – LL
